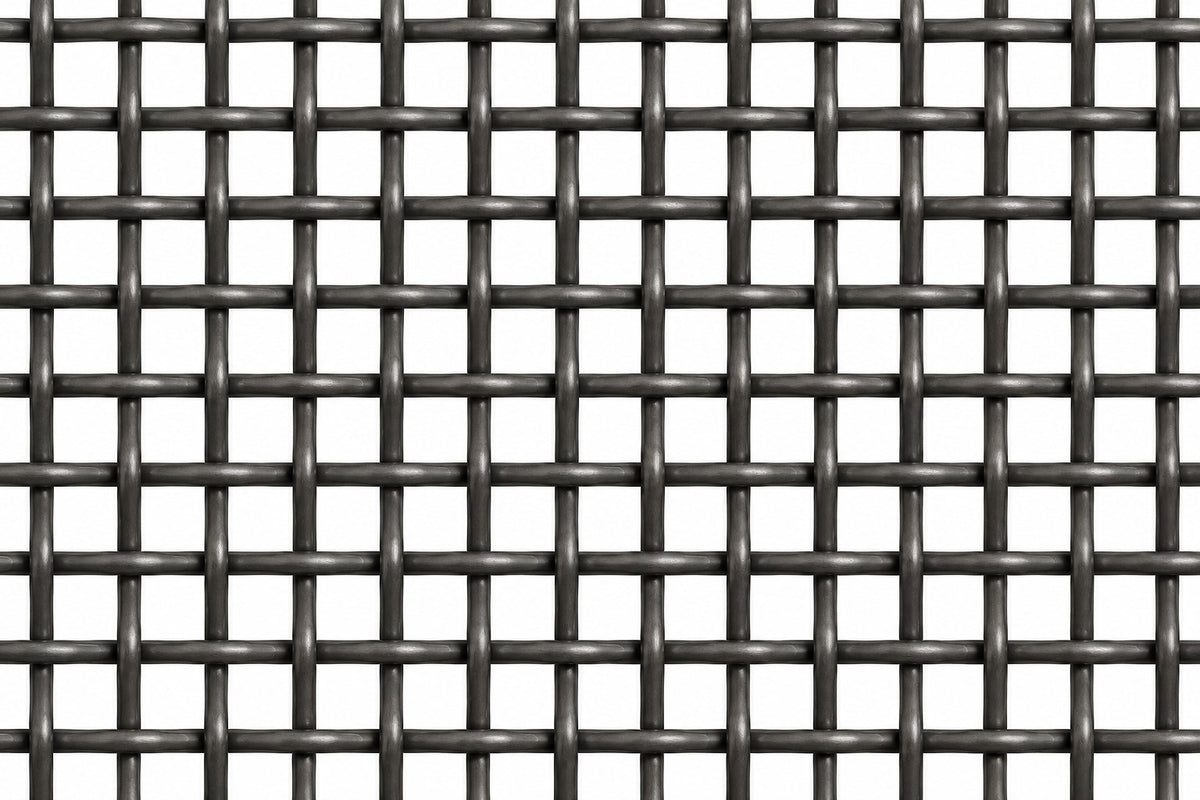

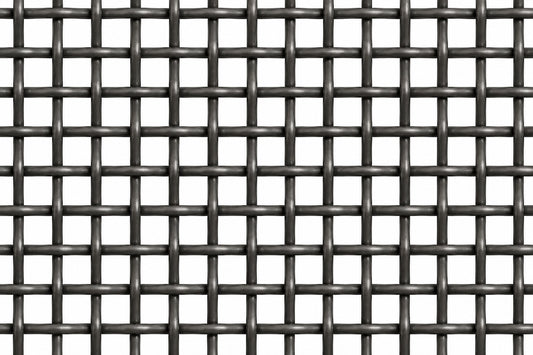

Low Carbon Steel Black Wire Mesh Plain Weave 16x16mesh 0.6mm

Low Carbon Steel Black Wire Mesh Plain Weave 16x16mesh 0.6mm

Quick Specifications

  • Material: Low Carbon Steel （Annealing wire）
  • Weave: Plain weave
  • Mesh Count: 16 x 16 mesh
  • Wire Diameter: 0.6 mm
  • Available Widths: 1000 mm / 1220 mm / 1300 mm
  • Roll Length: 30 m
Width
Length
$85.00 USD
$85.00 USD
Sale Sold out

Reference price only. Final pricing depends on material, mesh, wire diameter, roll size, quantity and destination.

Request a Quote / Send Specifications
View full details

Product information

Product Overview

This plain-weave wire mesh is made from low-carbon annealed steel wire and is suitable for screening, filtration, plastic pelletizer screen applications, and general processing purposes. The standard specification shown here is 16 x 16 mesh; it is available in various roll widths with a standard roll length of 30 meters. Customizations regarding material grade, mesh count, wire diameter, width, length, and formed shapes are available upon request.

Product data

Technical Specifications

ProductLow Carbon Steel Black Wire Mesh Plain Weave 16x16mesh 0.6mm
MaterialLow Carbon Steel (Annealed Wire)
Mesh16 x 16 mesh
Wire diameter0.6mm
Weave patternPlain weave
Available widths1000 mm / 1220 mm / 1300 mm
Standard roll length30 m
Supply formatFull rolls; slit rolls, cut sheets and fabricated pieces available by quotation.
PricingDisplayed price is a reference only. Final price is confirmed after specification, quantity and delivery terms are reviewed.

Material options

Materials

Low Carbon Steel (Annealing Wire) Steel Grade Q195 (Iron Wire)

Typical uses

Applications

Pelletizer screen
Plastic profile extruder screen
Filter screen support layer
Oil-based medium filter screen

Made to specification

Customization & Manufacturing Capability

Custom mesh count and wire diameter
Custom roll width and roll length
Slitting, cutting, stamping and edge finishing
Filter discs, sheets and fabricated parts
Sample and drawing review before production
Inspection documents and packing options by agreement

Documentation

Downloads

Product datasheets, material certificates, inspection records and technical drawings are available for qualified enquiries. Include the required document type in your request.

Buyer information

FAQ

Is the displayed price the final price?

No. It is a reference price. The final quotation depends on material grade, mesh, wire diameter, dimensions, quantity, destination and trade terms.

Can you manufacture custom sizes?

Yes. Please send the required width, length, quantity and any drawing or tolerance requirements.

Can I request samples or certificates?

Yes. Tell us the sample size and the certificate or inspection document you require.

What information helps you quote faster?

Material, mesh or aperture, wire diameter, roll or piece size, quantity, application and delivery country.
