Product information
Product Overview
Industrial-grade AISI 304 stainless steel crimped wire mesh for screening, sieving, filtration, separation and general industrial applications. Available in plain crimp, intermediate crimp, lock crimp and flat top crimp configurations, with a wide range of wire diameters and mesh openings. Custom material grades, aperture sizes, wire diameters, panel dimensions and fabricated formats are available on request.
Product data
Technical Specifications

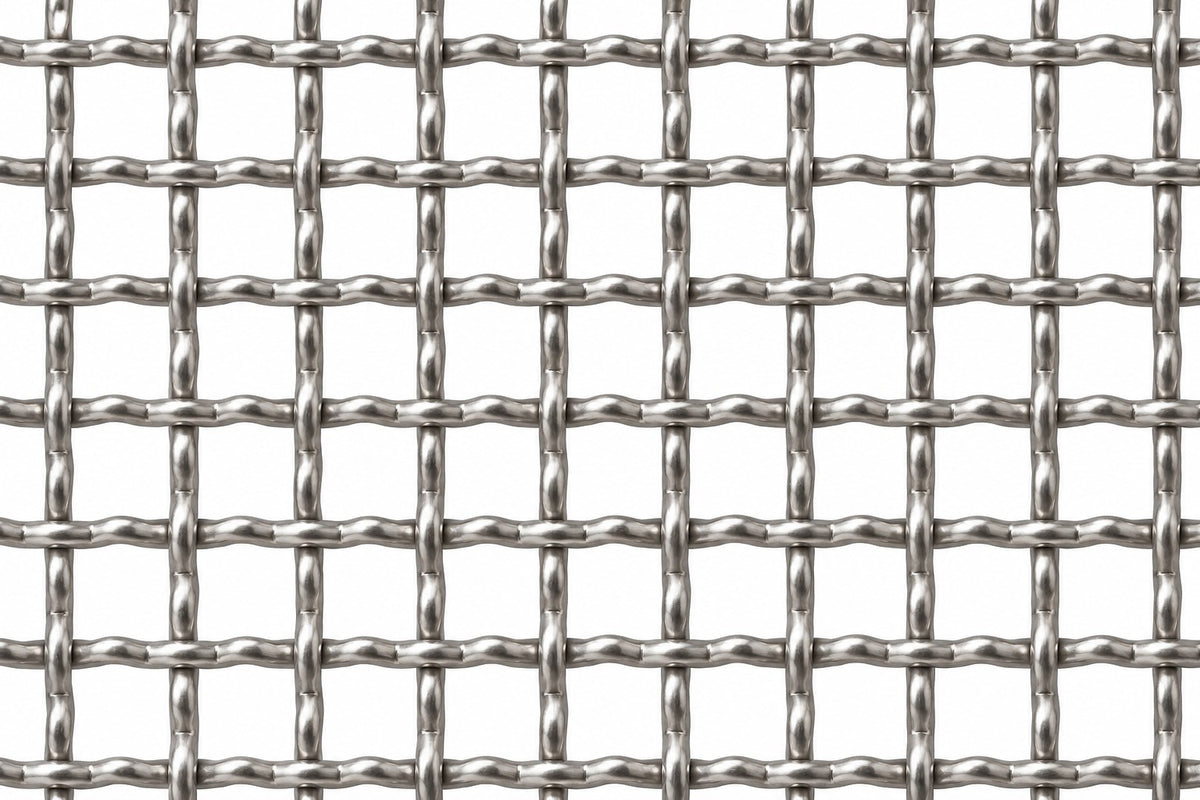

| Product | AISI 304 Stainless Steel Crimped Wire Mesh Screen 4x4mm |
|---|---|
| Material | AISI 304 stainless steel |
| Wire diameter | 2.0 mm |
| Aperture | 4x4mm |
| Weave pattern | Crimped Mesh |
| Available widths | 1000 mm / 1220 mm / 1300 mm |
| Standard roll length | 30 m |
| Supply format | Full rolls; slit rolls, cut sheets and fabricated pieces available by quotation. |
| Pricing | Displayed price is a reference only. Final price is confirmed after specification, quantity and delivery terms are reviewed. |
Material options
Materials
AISI 304 for general corrosion resistance
AISI 316 / 316L for more demanding environments
Other alloys and material certificates available on request
Typical uses
Applications
Industrial screening and particle separation
Food, chemical and general process equipment
Machine guards, ventilation and architectural infill
Made to specification
Customization & Manufacturing Capability
Custom mesh count and wire diameter
Custom roll width and roll length
Slitting, cutting, stamping and edge finishing
Sheets and fabricated parts
Sample and drawing review before production
Inspection documents and packing options by agreement
Documentation
Downloads
Product datasheets, material certificates, inspection records and technical drawings are available for qualified enquiries. Include the required document type in your request.
Buyer information
FAQ
Is the displayed price the final price?
No. It is a reference price. The final quotation depends on material grade, mesh, wire diameter, dimensions, quantity, destination and trade terms.
Can you manufacture custom sizes?
Yes. Please send the required width, length, quantity and any drawing or tolerance requirements.
Can I request samples or certificates?
Yes. Tell us the sample size and the certificate or inspection document you require.
What information helps you quote faster?
Material, mesh or aperture, wire diameter, roll or piece size, quantity, application and delivery country.
